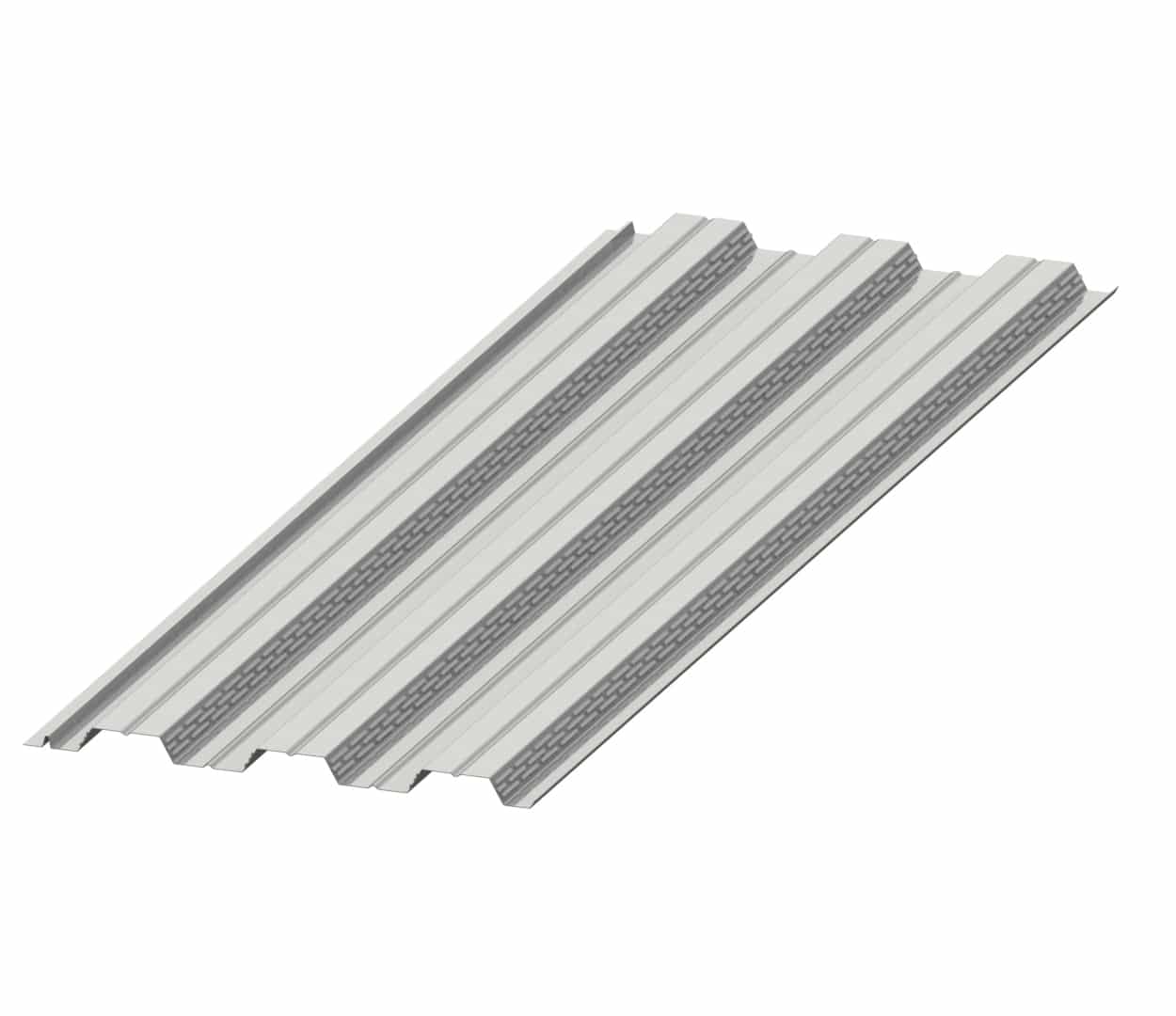

2.0 VLI Composite Deck

2″ Composite Steel Deck

2" composite metal deck spans greater distances than shallower deck as its 2" deep rib provides space for reinforcing materials such as rebar or wire mesh. It is recommended to pour a minimum of 2" of concrete over the ribs of the deck for a total slab thickness of 4".

(410) 796-7968

    Quantity
    Length
    Gauge
    Finish
    Custom Length:

    We Service , !

    Description

    2” composite floor deck panels are primarily used for pouring concrete slabs. Composite floor decks have embossments that grip the concrete slab and they are typically reinforced with rebar or wire mesh which creates a strong bond with the concrete floor. Composite steel deck is a permanent concrete form and provides positive reinforcement while it eliminates the time and cost of wood forming.

    2.0 or 2VLI Composite Deck Profile

    2.0 or 2VLI Composite Deck Profile

    About O’Donnell Metal Deck:

    Why wait? Job site change orders, problems, damaged deck, or new jobs. Whether you need 2.0" composite steel decking or any other products for concrete or steel roof deck, you can count on O’Donnell Metal Deck. We are committed to providing the fastest and easiest service for metal decking. We offer fast same and next day delivery of our 2.0" composite deck to the East Coast — proudly supplying projects in Maryland, Washington DC, Virginia, West Virginia, Ohio, Tennessee, North Carolina, South Carolina, Delaware, New York, New Jersey, Pennsylvania & across the country.

    O'Donnell Metal Deck National Sales Territory Map

    Fast Metal Deck Shop Drawings:

    Our ability to provide fast steel deck approvals has made us one of the best metal deck supply and detailing companies in the United States. Our process begins with fast and direct communication with our customers and stakeholders to ensure maximum productivity and timeliness. The metal deck shop drawing process is as outlined below.

    Approval Drawings

    Our team gathers, reviews and interprets information from the contract bid documents.

    EOR Review

    Our steel deck layout is submitted to the design team for missing information or discrepancies to solve potential issues.

    BOM Fabrication

    Once approved by the engineer, our detailers submit their bills of material to be fabricated.

    Field Use Plans

    We'll issue easy to read structural steel erection plans for field use to save installation time.



    Learn More about Metal Deck Shop Drawings.

    Example Metal Deck Shop Drawing

    2.0 Composite Gauges:

    22 Gauge Icon

    20 Gauge Icon

    18 Gauge Icon

    16 Gauge Icon

    2.0 Composite Finishes:

    G60 Deck Icon

    Galvanized G-60 zinc coated steel is the standard in the deck industry.

    G90 Deck Icon

    Galvanized G-90 is typically specified for exterior applications or project specific needs.

    Painted Deck Icon

    PTD or primer painted is an impermanent, provisional coating and is gray on top and bottom.

    Deck Options:

    Vented Deck:

    Vented Metal Deck

    Work with your engineer or architect to confirm the venting requirements based on the specific materials installed over the deck. We can supply factory punched integral hanger tabs in the deck to provide venting that provide between 0.25% and 0.50% open area.

    2" Composite Cellular Deck:

    2 Inch Comp Cellular Acoustical

    2" composite cellular deck is utilized in exposed ceiling areas where a flat bottom deck and a composite slab is desired. Our 2" metal deck can be combined with or without acoustical perforations in the flat plate for sound reduction as needed.

    Certifications

    Steel Deck Institute Certification Icon

    SDI Members:

    We only supply products certified by SDI members that meet the the strict standards for engineering, design, manufacturing and usage of steel decks.

    USA Domestic Steel Icon

    Made in America:

    Our products are made with US made steel. When mill certificates are required, we can provide you the material's physical and chemical properties. Contact Us for more information.

    UL Classified Product Icon

    UL Classified:

    Our products adhere to the UL standards for 2" composite deck. Refer to the UL Fire Directory for further information:
    Type 1-1/2", 2" and 3" Composite Deck for use in Design No. D779.

    Submittal Data:

    Contact us for specific product submittals and load tables

    (410) 796-7968

    Attachment Pattern:

    Composite Deck Fastening Patterns

    Your project Engineer will determine your attachment requirements for your design loads, building code and project requirements. The following standard 2" composite deck attachment pattern has been provided as a minimum recommendation for the product specified. The attachments should be made to from deck to support, deck sidelap to deck sidelap and seck to perimeter supports.

    SPECIFICATIONS  DETAIL
    Gauges 16, 18, 20, 22
    Height 2"
    Width 36"
    Finish Phos / Painted, Galvanized G-60, Galvanized G-90
